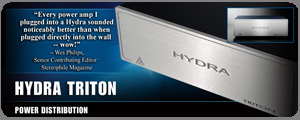

Hydra Triton The Hydra Triton power distributor is the beneficiary of a ten year research and development cycle aimed at perfecting high-performance, maximum current power-distribution for the film, recording and audio/video industries. All of the unique technologies within Hydra Triton are the exclusive intellectual property of Shunyata Research scientist Caelin Gabriel. These advances in technology earned the Hydra Triton sole possession of the Product of the Year award in its category from The Absolute Sounnd, and similar accolades from Editor Michael Fremer of Stereophile. It is rare in any product category -- even less so in power products, for there to be a consensus on products used in different systems and within differing contexts. Hydra Triton has broken that mold by offering reference performance in every recording, film, media and music system they have been applied in since their debut. Triton models are now being used in many of the finest recording studios; by top electronics manufacturers and industry luminaries the world over.
Specifications
MAXIMUM VOLTAGE
- Max Voltage: 125VAC (US)
- Max Voltage: 230VAC (Asia)
- Max Voltage: 240VAC (Euro)
CURRENT RATINGS
- Max continuous current: 20 Amps (US) / 16 Amps (Euro)
- Peak instantaneous current: >200 Amps (800us)
SURGE SUPPRESSION
- Max surge current: 80,000 Amps (8 / 50ms)
NOISE REDUCTION TECHNOLOGY
- 2 Shunyata MPDA (Multi-phase differential array)
(reduces impulse and broadband noise)
- 3 NIC (Noise Isolation Chambers)
ZrCa (ferroelectric noise reduction compound)
Length: 203mm x Diameter: 51mm
OVER CURRENT PROTECTION
- Hydraulic electromagnetic breaker
(eliminates thermal noise)
CONNECTORS
- Inlet: IEC-C20
(requires a power cord with a C19 connector)
- 8 US Outlets: Shunyata SRZ1 (NEMA P15)
- 10 Euro Outlets: EU1-16R
WIRING / BUSS SYSTEM
- 9-AWG VTX conductors
(Cryogenic CDA-101 oxygen free copper)
- ZP-PDS (Zero-point power distribution system)
Pure copper / zinc alloy
Cryogenically treated
CONSTRUCTION
- 14 gauge steel chassis
- Aluminum faceplate
DIMENSIONS
Width 17.25 inches 43.8 cm
Depth 16.50 inches 41.9 cm
Height 5.75 inches 14.6 cm
Weight 38 lbs 16.4 kg
|

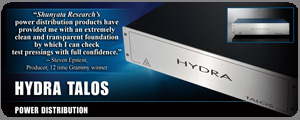

Hydra Talos Hydra Talos is the result of a ten year research and development cycle intended to perfect high-performance, maximum current power-distribution for film, recording and Audio/-Video industries. The series of material technologies within the Hydra Talos and Triton are exclusive to the designs of research scientist Caelin Gabriel.
Specifications
MAXIMUM VOLTAGE
- Max Voltage: 125VAC (US)
- Max Voltage: 230VAC (Asia)
- Max Voltage: 240VAC (Euro)
CURRENT RATINGS
- Max continuous current: 20 Amps (US) / 16 Amps (Euro)
- Peak instantaneous current: >200 Amps (800us)
SURGE SUPPRESSION
- Max surge current: 80,000 Amps (8 / 50ms)
NOISE REDUCTION TECHNOLOGY
- 1 Shunyata MPDA (Multi-phase differential array)
(reduces impulse and broadband noise)
- 3 NIC (Noise Isolation Chambers)
ZrCa (ferroelectric noise reduction compound)
Length: 203mm x Diameter: 38mm
OVER CURRENT PROTECTION
- Hydraulic electromagnetic breaker
(eliminates thermal noise)
CONNECTORS
- Inlet: IEC-C20
(requires a power cord with a C19 connector)
- 6 US Outlets: Shunyata SRZ1 (NEMA P15)
- 6 Euro Outlets: EU1-16R
WIRING / BUSS SYSTEM
- 9-AWG VTX conductors
(Cryogenic CDA-101 oxygen free copper)
- ZP-PDS (Zero-point power distribution system)
Pure copper / zinc alloy
Cryogenically treated
CONSTRUCTION
- 14 gauge steel chassis
- Aluminum faceplate
DIMENSIONS
Width 17.25 inches 43.8 cm
Depth 16.50 inches 41.9 cm
Height 4.25 inches 10.8 cm
Weight 23 lbs 10.0 kg
|

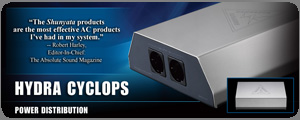

Hydra Cyclops Hydra Cyclops is Shunyata Research's Reference 2 outlet high-current power distributor. Hydra Cyclops was developed using all of the technologies and materials used in Shunyata Research's award-winning Triton design, including the critical Noise Isolation Chambers. Cyclops is the ultimate high-current delivery distributor for the industry's finest amplifiers, projectors, digital or analog sources and recording systems. Cyclops was meticulously developed using Shunyata's DTCD analyzer for optimal peak-current delivery. No product at any price will compare to the Cyclops ability to improve the performance of the world's finest amplifiers, sensitive source components or critical recording electronics.
Specifications
MAXIMUM VOLTAGE
- Max Voltage: 125VAC (US)
- Max Voltage: 230VAC (Asia)
- Max Voltage: 240VAC (Euro)
CURRENT RATINGS
- Max continuous current: 30 Amps (US) / 30 Amps (Euro)
- Peak instantaneous current: >200 Amps (800us)
SURGE SUPPRESSION
- None
NOISE REDUCTION TECHNOLOGY
- 1 Shunyata MPDA (Multi-phase differential array)
(reduces impulse and broadband noise)
- 2 NIC (Noise Isolation Chambers)
ZrCa (ferroelectric noise reduction compound)
Length: 152mm x Diameter: 38mm
OVER CURRENT PROTECTION
- None
CONNECTORS
- Inlet: IEC-C20
(requires a power cord with a C19 connector)
- 2 US Outlets: Shunyata SRZ1 (NEMA P15)
- 2 Euro Outlets: EU1-16R
WIRING / BUSS SYSTEM
- 9-AWG VTX conductors
Cryogenic CDA-101 oxygen free copper
CONSTRUCTION
- 14 gauge steel chassis
- Stainless steel top-plate
DIMENSIONS
Width 9.50 inches 24.1 cm
Depth 13.75 inches 34.9 cm
Height 4.00 inches 10.2 cm
Weight 10 lbs 4.54 kg
|

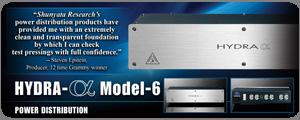

Hydra-α Model-6 Like its slightly smaller counterpart the Hydra-α Model-4, the Hydra-α Model-6 incorporates the Award-Winning Triton (Product-of-the-Year -- TAS) core technologies to deliver on Shunyata's promise of superior power-distribution performance at a more reasonable price point. The Hydra-α Model-6 utilizes the Triton's MPDA (Multi-Phase Differential Array) and ZPP-DS (Zero-Point Power Distribution Buss System) to offer a measurable advantage in peak-current, DTCD (Dynamic Transient Current Delivery) as well as vastly improved CCI (Component To Component Interference) isolation. Including the Talos and Triton designs, the the Hydra-α Series of products use the 3rd Generation Hydra technology to bring out the finest measurable performance in Shunyata's long and storied history.
Specifications
MAXIMUM VOLTAGE
- Max Voltage: 125VAC (US)
- Max Voltage: 230VAC (Asia)
- Max Voltage: 240VAC (Euro)
CURRENT RATINGS
- Max continuous current: 20 Amps (US) / 16 Amps (Euro)
- Peak instantaneous current: >200 Amps (800us)
SURGE SUPPRESSION
- Max surge current: 40,000 Amps (8 / 50ms)
NOISE REDUCTION TECHNOLOGY
- 1 Shunyata MPDA (Multi-phase differential array)
(reduces impulse and broadband noise)
OVER CURRENT PROTECTION
- Hydraulic electromagnetic breaker
(eliminates thermal noise)
CONNECTORS
- Inlet: IEC-C20
(requires a power cord with a C19 connector)
- 6 US Outlets: Shunyata SRZ1 (NEMA P15)
- 6 Euro Outlets: EU1-16R
WIRING / BUSS SYSTEM
- Dual 12-AWG conductors
(Cryogenic CDA-101 oxygen free copper)
- ZP-PDS (Zero-point power distribution system)
Pure copper / zinc alloy
Cryogenically treated
CONSTRUCTION
- 14 gauge steel chassis
- Aluminum faceplate
DIMENSIONS
Width 17.25 inches 43.8 cm
Depth 7.75 inches 19.7 cm
Height 4.20 inches 10.7 cm
Weight 8.4 lbs 3.81 kg
|
Hydra-α Model-4 Shunyata has engineered a product in the Hydra-α Model-4 that incorporates the Award-Winning Triton (Product-of-the-Year -- TAS) core technologies to deliver on Shunyata's promise of superior power-distribution performance at a more reasonable price point. The Hydra-α Model-4 utilizes the Triton's MPDA (Multi-Phase Differential Array) and ZPP-DS (Zero-Point Power Distribution Buss System) to offer a measurable advantage in peak-current, DTCD (Dynamic Transient Current Delivery) as well as improved CCI (Component To Component Interference) isolation. Including the Talos and Triton designs, the the Hydra-α Series of products use the 3rd Generation Hydra technology to bring out the finest measurable performance benefits in Shunyata's long history.
Specifications
MAXIMUM VOLTAGE
- Max Voltage: 125VAC (US)
- Max Voltage: 230VAC (Asia)
- Max Voltage: 240VAC (Euro)
CURRENT RATINGS
- Max continuous current: 20 Amps (US) / 16 Amps (Euro)
- Peak instantaneous current: >200 Amps (800us)
SURGE SUPPRESSION
- Max surge current: 40,000 Amps (8 / 50ms)
NOISE REDUCTION TECHNOLOGY
- 1 Shunyata MPDA (Multi-phase differential array)
(reduces impulse and broadband noise)
OVER CURRENT PROTECTION
- Hydraulic electromagnetic breaker
(eliminates thermal noise)
CONNECTORS
- Inlet: IEC-C20
(requires a power cord with a C19 connector)
- 4 US Outlets: Shunyata SRZ1 (NEMA P15)
- 4 Euro Outlets: EU1-16R
WIRING / BUSS SYSTEM
- Dual 12-AWG conductors
(Cryogenic CDA-101 oxygen free copper)
- ZP-PDS (Zero-point power distribution system)
Pure copper / zinc alloy
Cryogenically treated
CONSTRUCTION
- 14 gauge steel chassis
- Aluminum faceplate
DIMENSIONS
Width 15.00 inches 38.1 cm
Depth 7.75 inches 19.7 cm
Height 4.20 inches 10.7 cm
Weight 7.3 lbs 3.31 kg
|

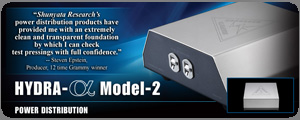

Hydra-α Model-2 The Hydra-α Model-2 incorporates the core MPDA (Multi-Phase Differential Array Filter) technologies from the Hydra Triton and Talos to deliver exceptional high-current performance to a wide variety of studio, home media and entertainment systems. Any system; whether a modest two component system or a massive studio or home theater set up can benefit from the Hydra-α Model-2's modest size and flexible placement capability. Hydra-α Model-2 was designed using Shunyata Research's DTCD measurement analysis to insure that it offers the finest high-current capable performance in the industry.
Specifications
MAXIMUM VOLTAGE
- Max Voltage: 125VAC (US)
- Max Voltage: 230VAC (Asia)
- Max Voltage: 240VAC (Euro)
CURRENT RATINGS
- Max continuous current: 30 Amps (US) / 30 Amps (Euro)
- Peak instantaneous current: >200 Amps (800us)
SURGE SUPPRESSION
- None
NOISE REDUCTION TECHNOLOGY
- 1 Shunyata MPDA (Multi-phase differential array)
(reduces impulse and broadband noise)
OVER CURRENT PROTECTION
- None
CONNECTORS
- Inlet: IEC-C20
(requires a power cord with a C19 connector)
- 2 US Outlets: Shunyata SRZ1 (NEMA P15)
- 2 Euro Outlets: EU1-16R
WIRING / BUSS SYSTEM
- Dual 12-AWG conductors
(Cryogenic CDA-101 oxygen free copper)
CONSTRUCTION
- 14 gauge steel chassis
- Stainless steel top-plate
DIMENSIONS
Width 9.50 inches 24.1 cm
Depth 9.25 inches 23.5 cm
Height 4.00 inches 10.2 cm
Weight 5.1 lbs 2.31 kg
|

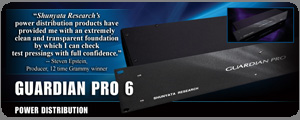

Guardian Pro Model-6 Guardian PRO Series power distributors are a new category of product created to meet the overwhelming professional and recording industry demand for Shunyata Research's power distribution products. Although Hydra Series products are already in use in the world's finest studios, the Guardian PRO Series trim form factor, rack mount capability and compact go-any where size will more ideally suit applications where the larger Hydra Series products are not as practical.
Specifications
GUARDIAN PRO 6
- Outlets: 6 Shunyata SR-Z1
- Power Output: 2400 Watts unregulated
- Current Rating: 20A continuous / 50A peak
TRIDENT DEFENSE SYSTEM
- Noise Reduction: VF filter (3-element)
- Surge Protection: 10,000A
- Over-current: Electromagnetic breaker
POWER DISTRIBUTION SYSTEM
- Outlets: US or EURO type
- Wiring: UL Listed Shunyata Research 12-gauge
- Buss: Star wired
- 20A detachable inlet
CONSTRUCTION
14-gauge powder-coated steel chassis
RACKMOUNT: Standard
|

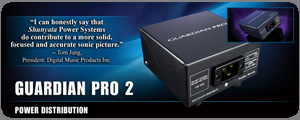

Guardian Pro Model-2 Guardian PRO Series power distributors are a new category of product created to meet the overwhelming professional and recording industry demand for Shunyata Research's power distribution products. Although Hydra Series products are already in use in the world's finest studios, the Guardian PRO Series trim form factor, rack mount capability and compact go-any where size will more ideally suit applications where the larger Hydra Series products are not as practical.
Specifications
GUARDIAN PRO 2
- Outlets: 2 Shunyata SR-Z1
- Power Output: 2400 Watts unregulated
- Current Rating: 20A continuous / 50A peak
TRIDENT DEFENSE SYSTEM
- Noise Reduction: VF filter (3-element)
- Surge Protection: 10,000A
- Over-current: NA
POWER DISTRIBUTION SYSTEM
- Outlets: US or EURO type
- Wiring: UL Listed Shunyata Research 12-gauge
- Buss: Star wired
- 20A detachable inlet
CONSTRUCTION
14-gauge powder-coated steel chassis
FLOOR MOUNT: (in-line type device)
|
